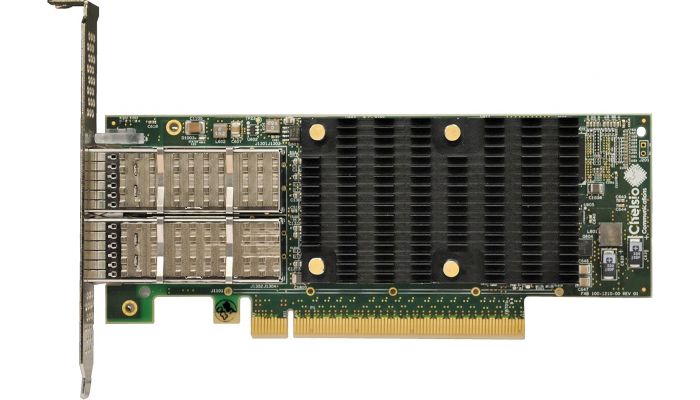

Chelsio T62100-LP-CR Dual-Port 2x QSFP28 PCIe 100GbE Network Card
Chelsio T62100-LP-CR Dual-Port 2x QSFP28 PCIe 100GbE Network Card
Chelsio’s T62100-LP-CR is a dual port 40/50/100Gb Ethernet Unified Wire Adapter/Network Card, with a PCI Express 3.0 x16 host bus interface, optimized for storage, cloud computing, HPC, virtualization, storage, and other data center applications.
It enables TCP, UDP, iSCSI, iWARP, FCoE, TLS/SSL, DTLS, IPsec, SMB 3.X crypto, and SDN Offload over Single Unified Wire with SR-IOV, EVB/VNTag and DCB.
T62100-LP-CR provides sub micro-second end-to-end latency, while offloading the host CPU from a variety of typical storage, networking, and cloud related protocols. This will enable savings in host CPU acquisition costs, power and operational costs, and dramatically increases system performance.
Highlights
• PCI Express Gen3 x16
• Low latency user-space I/O
• 32K concurrent offloaded conn. capacity
• Full TCP and UDP offload
• Full iSCSI, FCoE offload
• Full NVMe over Fabrics (NVMe-oF) offload
• Full iWARP RDMA offload
• Full TLS/SSL, DTLS, IPsec and SMB 3.X crypto offload
• OVS Offload with OpenFlow support
• DPDK (Data Plane Development Kit)
• EVB, Flex10, VNTag
• PCI-SIG SR-IOV
• Integrated media streaming offload
• HW based firewall and NAT offload
• Traffic filtering & management
• IEEE 1588v2 Precision Time Protocol
• Software Compatible with T4 and T5
• Supports x86, Armv8 (Aarch64), IBM Power and OpenPOWER Servers
Specifications
Host Interface
• PCI-E Gen3 x16
• MSI-X, MSI and support for legacy pin interrupts
Security
• AES 128/256 and SHA1/SHA2 offload
• TLS/SSL, DTLS, IPsec and SMB 3.X crypto support
• Full offload
