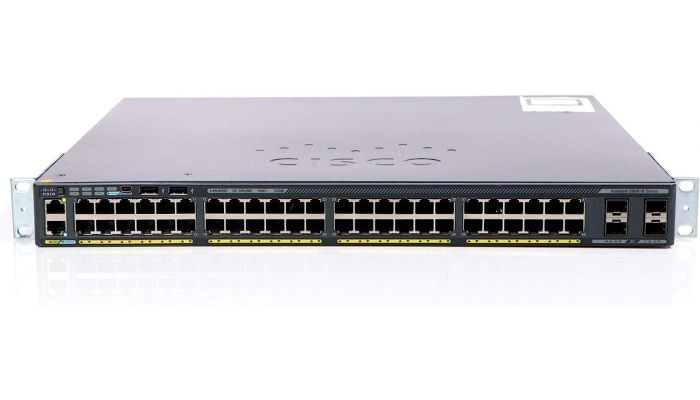

Cisco Catalyst 2960-X 48 GigE PoE+ 740W, 2x10G SFP+ LAN Base (WS-C2960X-48FPD-L)
Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
– 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
– Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
– FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
– Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
– Reduced power consumption and advanced energy management features.
– USB and Ethernet management interfaces for simplified operations.
– Application visibility and capacity planning with integrated NetFlow-Lite.
| Weight | 7.84715 kg |
|---|---|
| Switch type |
Managed |
| Number of power supply units |
1 |
| Safety |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Built-in processor |
Y |
| Processor model |
AppliedMicro APM8639 |
| Processor frequency |
600 MHz |
| Memory type |
DRAM |
| Internal memory |
512 MB |
| Flash memory |
128 MB |
| Noise level |
57 dB |
| Mean time between failures (MTBF) |
233370 h |
| Redundant power supply (RPS) support |
Y |
| AC input voltage |
100 – 240 V |
| Product colour |
Black |
| AC input frequency |
50 – 60 Hz |
| Power consumption (typical) |
66 W |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) ports quantity |
48 |
| Total Power over Ethernet (PoE) budget |
740 W |
| Operating temperature (T-T) |
-5 – 40 °C |
| Storage temperature (T-T) |
-25 – 70 °C |
| Operating relative humidity (H-H) |
10 – 95% |
| Storage relative humidity (H-H) |
10 – 95% |
| Operating altitude |
0 – 3000 m |
| Non-operating altitude |
0 – 4000 m |
| LED indicators |
Y |
| Stackable |
Y |
| Switch layer |
L2 |
| Broadcast storm control |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity |
2 |
| Console port |
RJ-45 |
| USB 2.0 ports quantity |
2 |
| Networking standards |
IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support |
Y |
| Full duplex |
Y |
| Link aggregation |
Y |
| Rate limiting |
Y |
| Rack mounting |
Y |
| Auto MDI/MDI-X |
Y |
| Spanning tree protocol |
Y |
| VLAN support |
Y |
| Number of VLANs |
1023 |
| Switching capacity |
216 Gbit/s |
| Jumbo frames support |
Y |
| DHCP features |
DHCP server |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| SSH/SSL support |
Y |
| Multicast support |
Y |
| Power LED |
Y |
