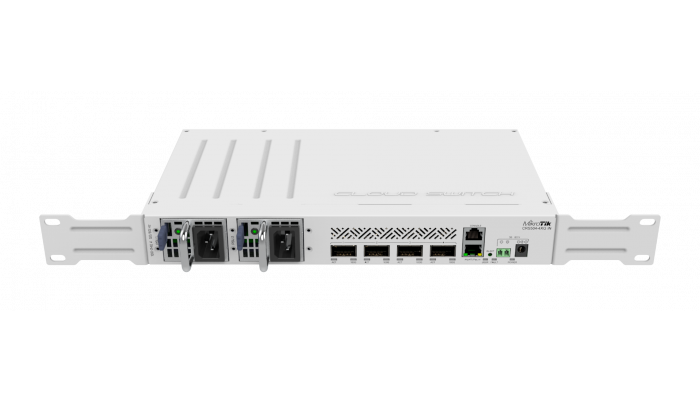

MikroTik Cloud Router Switch CRS504-4XQ-IN - 4x 100 Gigabit QSFP28

$1,150.00
In stock
SKU
CRS504-4XQ-IN

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!

Specifications

Details
Product code CRS504-4XQ-IN
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX4310
Dimensions 320 x 185 x 44 mm
RouterOS license 5
Operating System RouterOS (v7 only)
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C



Powering

Details
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage 36-57 V
2-pin terminal input Voltage 36-57 V
Frequency (Hz) 47-63
Max power consumption 41 W
Max power consumption without attachments 25 W
Cooling type 2 fans
PoE in 802.3 bt
PoE in input Voltage 43-57 V


Ethernet

Details
10/100 Ethernet ports 1


Fiber

Details
Number of 100G QSFP28 ports 4


Peripherals

Details
Serial console port RJ45


Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
