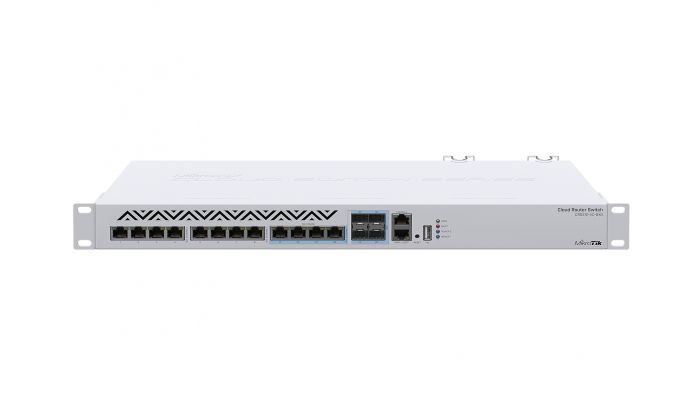

MikroTik CRS312-4C+8XG-RM Switch - 8x 10GB RJ45 Ethernet Ports + 4x 10GB Combo Ports RJ45/SFP+
$985.00
Out of stock
SKU
CRS312-4C+8XG-RM
The CRS312-4C+8XG-RM has 10G RJ45 Ethernet ports, 4 x 10G combo ports. Combo ports can be used alongside the 8 regular 10G RJ45 Ethernet ports at all times. These ports can also be software selected, so you can use RouterOS scripting, to decide which combo ports will be active.
This device is a practical solution for those who work with huge data files and need fast, capable connection 24/7: multimedia production, scientific research, game development, big data analysis and so on. CRS312-4C+8XG-RM has a dual power supply for redundancy. It has a standard USB, a console port for configuration and a 1U rackmount case.
This switch has a non-blocking throughput of 120 Gbps, switching capacity of 240 Gbps and forwarding rate of 178 Mpps.
Specifications
| Details | |
|---|---|
| Product code | CRS312-4C+8XG-RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 443 x 183 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -30°C to 70°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 60 W |
| FAN count | 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| Number of Combo 10G Ethernet/ SFP+ ports | 4 |
| Number of 1G/2.5G/5G/10G Ethernet ports | 8 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
