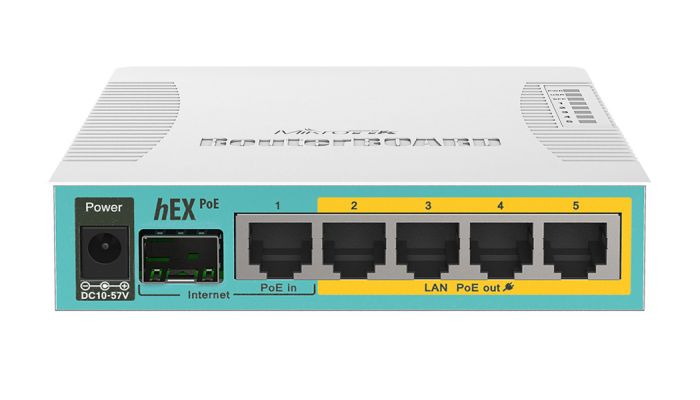

MikroTik hEX POE (5x 1Gb ethernet ports, 4x PoE out ports, 1x SFP port)

$125.00
Out of stock
SKU
RB960PGS

The hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and an SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It has a 800MHz CPU. Max current is 1A per port, Ethernet ports are shielded.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.



Specifications

Details
Product code RB960PGS
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS
PoE in Passive PoE
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 60°C


Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 54 W
Max power consumption without attachments 6 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 12-57 V


PoE-out

Details
PoE-out ports Ether2-Ether5
PoE out 802.3af/at
Max out per port output (input < 30 V) 1 A
Max out per port output (input > 30 V) 450 mA
Max total out (A) 2 A


Ethernet

Details
10/100/1000 Ethernet ports 5


Fiber

Details
SFP ports 1


Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Details
IP IP20
